Our Crane
Palfinger
PK 1050 TEC

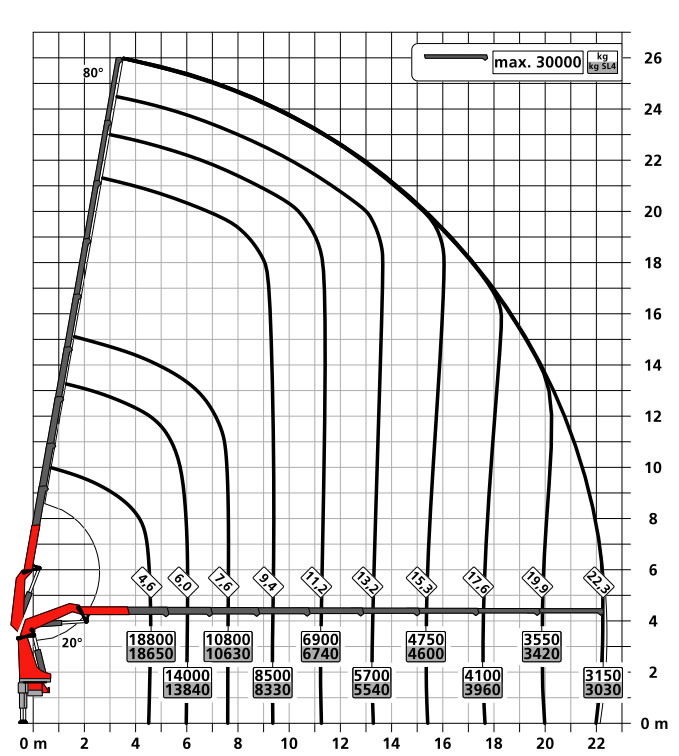

- Crane reach 22.3 meters with 3030kg
- Hydraulic flyjib 35 meters with 1 tonne
- Hydraulic flyjib and second manual flyjib 40m reach with 350kg
- Active Oscillation Suppression
- High Performance Stability Control
- HPSC + Load
- Leveling assistant
- Memory position
- Weighing of load
- Soft stop
- Boom extension monitoring
- 3.5T / 7T winch
This is the latest model offered by Palfinger and features many new technological improvements for increased safety and efficiency.

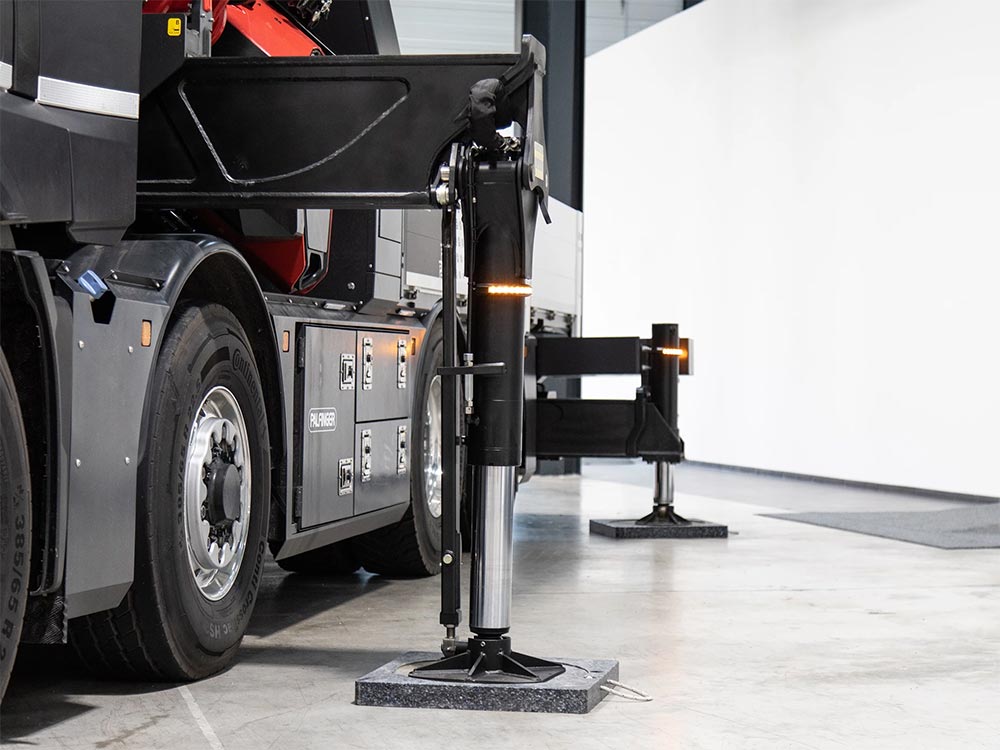

Levelling Assistant
Up to 80 % time savings when leveling the vehicle
The LEVELING ASSISTANT simplifies the stabilizing process overall by optimally leveling the vehicle. The process itself takes place through pulsating movements of the stabilizer cylinders. With just one lever movement on the remote control, optimal leveling is achieved by pulsating movements of the stabilizers. In order to achieve the best possible vehicle inclination for each individual application, the operator can choose between two versions, steep position or HPSC.

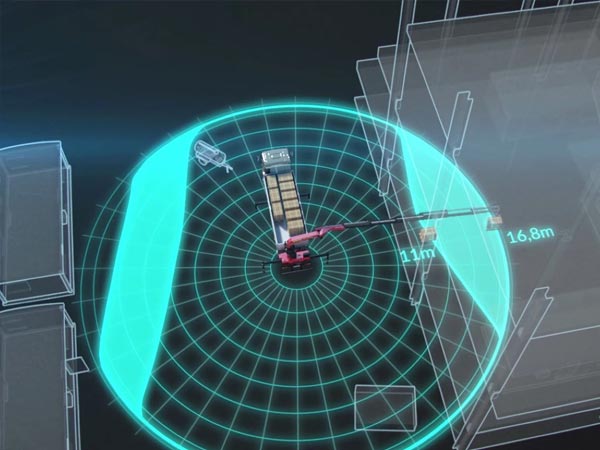

HPSC + LOAD
Maximum utilisation of the working area
The HPSC system calculates and defines the permissible working range for any stabilizer situation. The position of the stabilizer supports are detected by the crane. Based on an intelligent calculation algorithm developed by Palfinger, this complex calculation process enables a very accurate approximation to the vehicle’s actual stability based on the crane and vehicle’s real data and will reduce crane lift capacity in areas where outriggers are not fully extended.
The LOAD feature is an add on module to HSPC that automatically detects any additional ballast weight added to the crane. This effectively adds stability to the crane and therefore increases the lifting capacity.

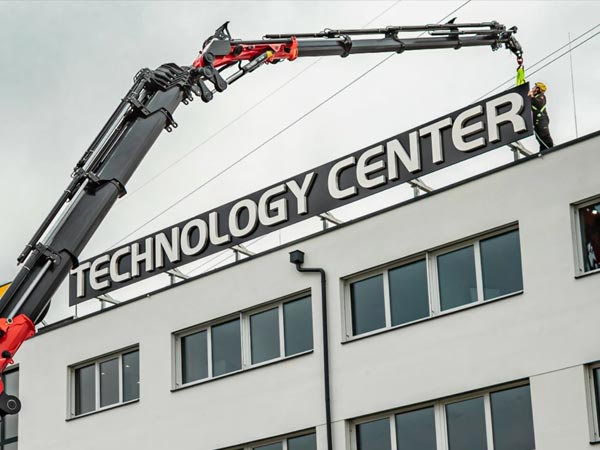

Dual Power system DPS-C
Full lifting power for efficient fly jib operation
The Dual Power System Continuous enables a significant increase of lifting capacity on the fly jib. A length measuring system identifies the current position of the extension booms and the fly jib and can continuously select the pressure range that suits the respective position and get even more lifting power out of the TEC crane at any time.
P-FOLD
Perfectly ready for use with just one lever
The P-Fold assistance system makes folding and unfolding a breeze for the operator. With just one lever movement, the TEC crane can be laid apart and folded up again quickly and without damage. This reduces set-up time to a minimum. The RTC (Rope Tension Control) system is an ideal addition if a rope winch is existing.

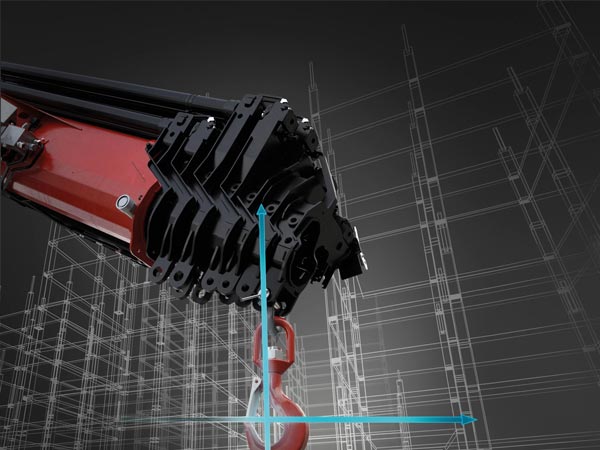

Smart Control
Precise crane tip control with just one lever instead of individual ones to control functions
SMART CONTROL is the innovative and easier way to control the crane tip horizontally, vertically and diagonally in all directions with just one lever movement. The system recognizes by itself heavy loads on the hook and automatically compensates the deflection of the crane. This means that precise work can be carried out even more comfortably. The fly jib can be controlled as usual. This makes controlling a crane much easier.
Memory Position
Storage of up to 4 crane positions for more efficient work
With MEMORY POSITION, the operator can save defined crane positions including fly jib and rope winch for each operation and approach them exactly by using only one or two levers. Regardless of whether previously saved without a load and then start up again with a load, the system automatically compensates for the respective deflection. Positions that are often the same, like above the loading area of the truck, can also remain saved and do not have to be set new each time.

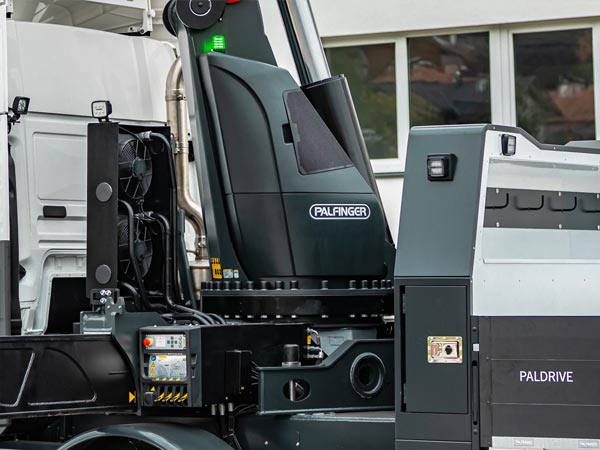

Continuous Slewing System
Unrestricted Movement
The continuous slewing system offers full flexibility and efficiency in any operation. This feature enables faster unloading, as the crane can be slewed to the desired position using the shortest possible route. This means working in almost any direction without having to reposition the vehicle.

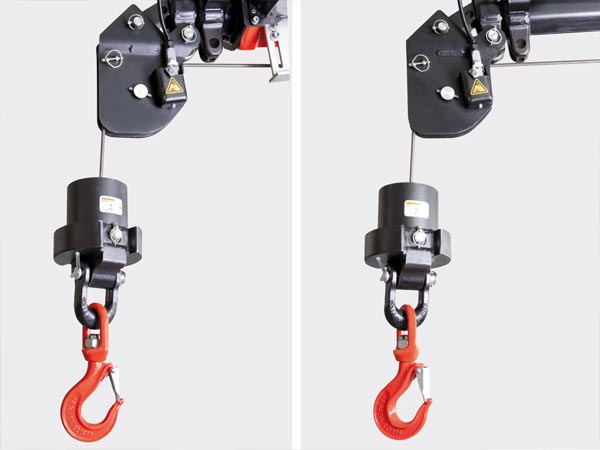

SRC & RTC
More comfort in rope winch operation
The Synchronized Rope Control (SRC) maintains the distance between pulley head and hook blocks constant while the crane is being operated. In this way, the operator always has the certainty that the distance to the load remains constant. The Rope Tension Control (RTC) extends operator comfort by automatically controlling the rope length at any time and at any position. The combination of these two systems significantly increases the comfort for the operator and also increases the efficiency of each rope winch operation.

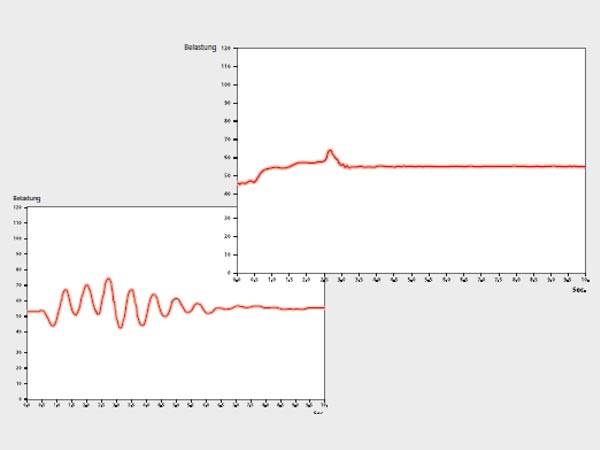

AOS
Oscillation-free work
Active Oscillation Supression (AOS) is a patented assistance system from PALFINGER, which compensates vibrations and shocks in the vertical direction during crane operation. This reduces backswing to a minimum and ensures a consistently high standard of safety when transporting a load or emptying big bags.

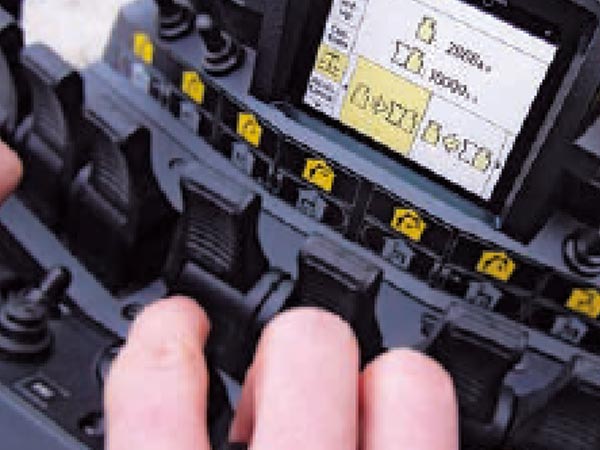

Mext & Weigh
Extended gain in safety and comfort
Thanks to the assistance systems MEXT & WEIGH, working is even safer and more comfortable. MEXT monitors the mechanical extensions and integrates them into the overload protection. On the one hand, the outrange is increased and, on the other hand, the maximum load capacity is adapted to the respective extension. WEIGH enables the load to be weighed directly at the crane tip. It is also possible to summarize the last ten loads with the date and time.

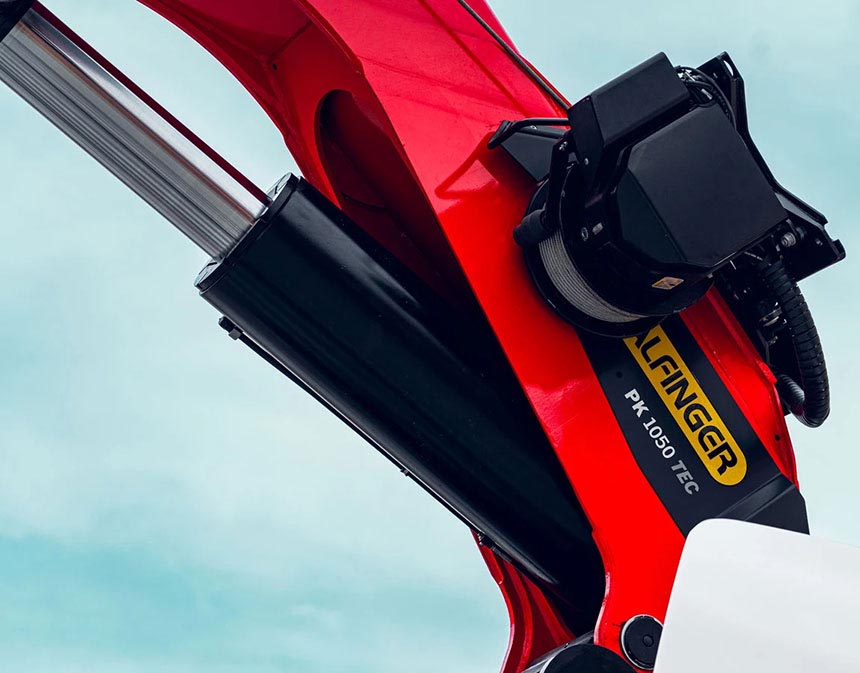

Our PK 1050 TEC crane is a remote controlled knuckle boom crane featuring a hydraulic fly jib and second manually adjustable fly jib with a winch rope. This model stands out in this size range with an outreach of 40 meters.
For heavy lift operations, the fly jibs can easily be disconnected on site, leaving only the main crane boom to complete the task. Depending on a number of factors, the crane can lift up to 20 tonne in this configuration.
Certain assignments may require the winch rope. This offers great lift flexibility like a mobile crane and has a capacity of 3.5 tonne or can be double reaved for 7 tonne capacity.
We have many attachments to add to the crane depending on the job requirements. Some of these include workman baskets, installation tips and pallet forks to name a few.
We have a trailer to tow behind the crane which can carry up to 12 tonne of payload.
